[littleowl]

Well I attempted removal of the panels today to send them off for powder coating. The decal is actually made of metal (I thought it was plastic or rubber) so handle it with care otherwise it will bend out of shape easily. It is glued solidly onto the panel, the glue is a kind of rubbery/foamy stuff which really sticks! I guess Ducati want you to mess it up so you have to spend £42 on another set. I tried all kinds of ways to remove it - hair dryer and plastic credit card, fishing line, nothing was effective so what I ended up doing was to CAREFULLY prise the end of the decal away from the panel and cut the adhesive with a very sharp, very thin kitchen knife (has to have sharpness of a Stanley blade). Aiming the cut towards the decal not the panel! This proved effective and I then had to figure out how the panel was attached to the tank once I undid the screw as I didn't want to be pushing/pulling the wrong way! It seemed to slide on backwards so I wrapped a towel around the panel to avoid scratching the tank and with a bit of wriggling it came off (phew!). Then had to try to remove all the glue residue which took me a fair while with lots of white spirit and a plastic credit card. Interestingly, despite all the hard scratching I was doing with the card, there was not a mark on the panels - whereas a few rides with my leather trouser seam catching it caused a large scratched area! Anyway here is a pictorial for those interested :

Glue left after removal of decal



Underside of the decal filled with this glue, have no idea what it is but it is very effective!



Underside of the panel showing the screw hole, two grommets which push onto two tabs on the tank, and the tab to slide backwards



Rear tab



Tank



Tab locates into this

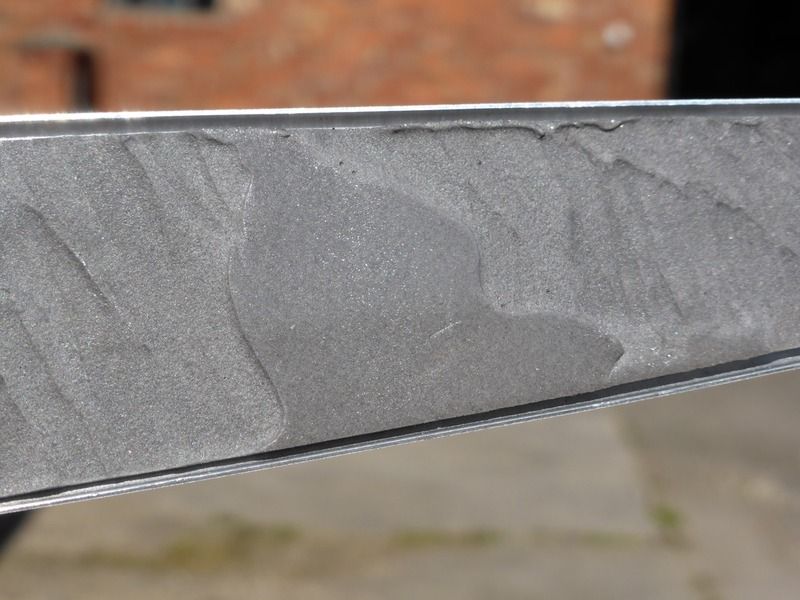

Glue residue on panel



After cleaning



Little red Icon naked



[silverluxe]

Are my eyes playing tricks on me or are the side panels solid hunks of aluminum? Or are they hollow formed with air between both sides?

Either way, that was not what I was expecting the inside to look like.



[littleowl]

Are my eyes playing tricks on me or are the side panels solid hunks of aluminum? Or are they hollow formed with air between both sides?

Either way, that was not what I was expecting the inside to look like.

No the camera is playing tricks, they are concave



[silverluxe]

I came back from a meeting and yes, now they look completely concave to me.. It must be Monday!



[Umvubuafrica]

Hi , are you painting the panels White ? what are you going to use to stick the decal back on again ?



[Umvubuafrica]

Paint parts

I will probably paint the rear shock spring, front break caliper and headlight trim red with white side panels. Hope Ducati come out with a white tank protector



[idaka]

Very usefull Information and good pics.
Thank you very much!
Cheers



[littleowl]

Hi , are you painting the panels White ? what are you going to use to stick the decal back on again ?

No they are going to be powder coated black, someone suggested velcro to stick the decals back on again which seems a very good idea. I need to get all the glue from inside the decal out first though which is going to be fiddly!



[Tropy73]

No they are going to be powder coated black, someone suggested velcro to stick the decals back on again which seems a very good idea. I need to get all the glue from inside the decal out first though which is going to be fiddly!

Was reading this old trail. How did you reattached them again? velcro? doesn't look neat to me...



[markstar]

Was reading this old trail. How did you reattached them again? velcro? doesn't look neat to me...

ive used this product seems to work good and fishing line works for me when cutting the glue



[AnotherHobby]

Was reading this old trail. How did you reattached them again? velcro? doesn't look neat to me...

I just used glue. I vinyl wrapped my side panels, so the logos will be very easy to get off if I remove the vinyl.



[Tropy73]

ive used this product seems to work good and fishing line works for me when cutting the glue

Can you post a better picture of this product you have used above?

Planning to put these aluminum logos on my bike. I really hope the weight won't be a problem. Vinyl isn't perfect for metal. I think i should screw them down and that is it...
Any better idea guys?



[ichitz]

since those vintage sets already have the screw holes, I say use screws and it'll be easily removable in the future.



[SmoquedKiwi]

This is how I removed mine with braided/fabric fishing line.
https://youtu.be/hVh4j_dcY-s



[JJMax]

Thanks a lot for sharing!



[TC3]

This is how I removed mine with braided/fabric fishing line.
https://youtu.be/hVh4j_dcY-s

I removed the same by simply heating up with a hair dryer. It then just peeled off in one go with no residue left behind



[Karlo]

I just used glue. I vinyl wrapped my side panels, so the logos will be very easy to get off if I remove the vinyl.

hey AnotherHobby I want to do the same vinyl wrap my side panels using this material so kind of faking wood style

in your case which material you used? or where did you buy it?

http://www.aliexpress.com/item/40x1...2473128052.html?spm=2114.40010308.4.14.YHvvGF

thanks
